Sibitweld MIG Torch - 26KD

* Compatible Torch and Parts for:

Binzel 26KD

Technical Data

Cooling

Duty Cycle

Rating

Wire Size

Gas

60%

290A CO2

260A Mixed Gases

Φ 0.8~1.2 mm

Complete Torch

Product ID #

SMD 2898-36

SMD 2895-36

SMD 2899-36

Reference

Description

MIG 26KD Torch 3m Euro Adaptor /spring pins

MIG 26KD Torch 4m Euro Adaptor /spring pins

MIG 26KD Torch 5m Euro Adaptor /spring pins

MIG CONSUMABLES

Contact Tips

Nozzles

Diffusers and Tip Holders

Central Adaptors

Liners

Complete Cables

Insulators

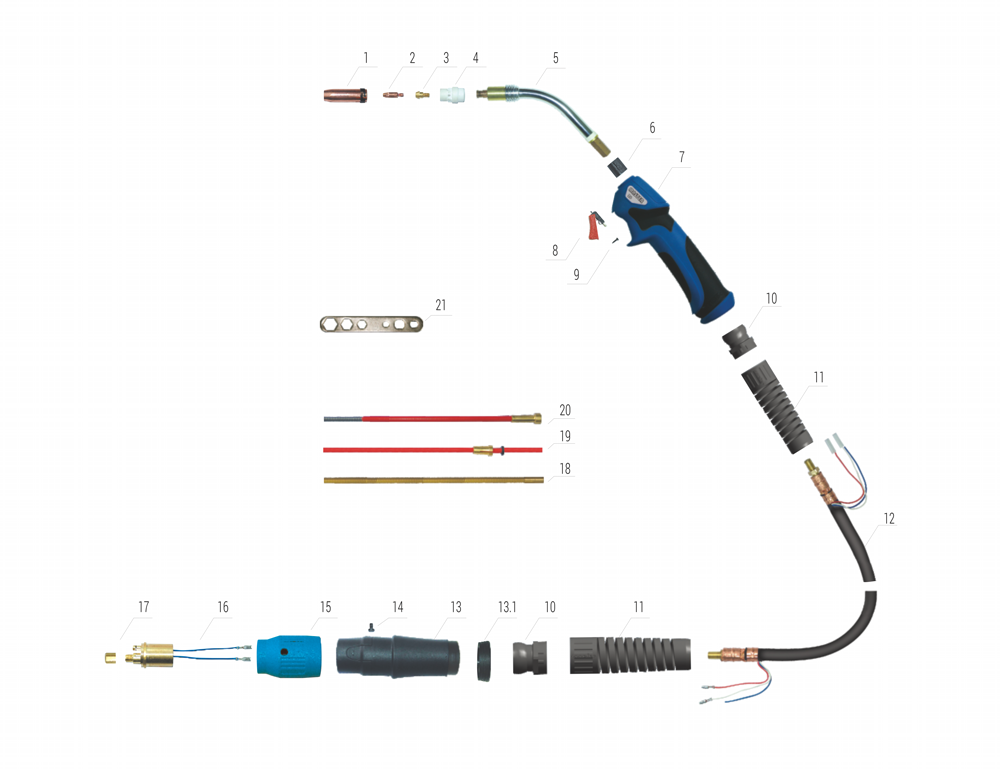

TORCH DETAILS






      Number
      Product ID #
      Reference
      Description


      1


      Gas nozzle


      1.1
      SMC0740
      145.0132
      Tapered Gas nozzle Φ14 mm


      1.2
      SMC0713
      145.0085
      Conical Gas nozzle Φ16 mm


      1.3
      SMC0746
      145.0051
      Cylindrical Gas nozzle Φ20 mm


      2


      Contact tip


      2.1
      SME 0004-08
      140.0051
      M6x28x0.8 Contact Tip, E-Cu


      2.2
      SME 0004-10
      140.0242
      M6x28x1.0 Contact Tip, E-Cu


      2.3
      SME 0004-12
      140.0379
      M6x28x1.2 Contact Tip, E-Cu


      2.4
      SME 0004-78
      140.0054
      M6x28x0.8 Contact Tip, CuCrZr


      2.5
      SME 0004-80
      140.0245
      M6x28x1.0 Contact Tip, CuCrZr


      2.6
      SME 0004-82
      140.0382
      M6x28x1.2 Contact Tip, CuCrZr


      2.7
      SME 0005-08
      140.0114
      M8x30x0.8 Contact Tip, E-Cu


      2.8
      SME 0005-10
      140.0313
      M8x30x1.0 Contact Tip, E-Cu


      2.9
      SME 0005-12
      140.0442
      M8x30x1.2 Contact Tip, E-Cu


      2.1
      SME 0005-78
      140.0117
      M8x30x0.8 Contact Tip, CuCrZr


      2.11
      SME 0005-80
      140.0316
      M8x30x1.0 Contact Tip, CuCrZr


      2.12
      SME 0005-82
      140.0445
      M8x30x1.2 Contact Tip, CuCrZr


      3


      Contact tip holder


      3.1
      SME 0016
      142.0007
      Contact tip holder M6x22 mm


      3.2
      SME 0017
      142.0012
      Contact tip holder M6x25 mm


      3.3
      SME 0018
      142.0082
      Contact tip holder M8x22 mm


      3.4
      SME 0019
      142.0026
      Contact tip holder M8x25 mm


      4
      SMP 0535
      18.0141
      White ceramic gas diffuser 26KD


      5
      SMJ 0636
      18.0001
      Torch head 26KD


      6
      SRT 0030-01
      400.0044
      Plastic Body


      7
      SMF 0890-01

      MIG Handle Blue/Grip


      8
      SRA 0070
      185.0031
      Trigger


      9
      SPD 0874

      Screw M3x10


      10
      SRT 0021

      Joint For MIG Handle


      11
      SPD 0882

      Spring For Cable support


      12
      SMX 0696
      160.0239
      Coaxial Cable 25mm2


      13
      SRT 0703

      Back box


      13.1
      SRT 0715

      Housing For Handle


      14
      SPD 0063

      Screw M4x6: il M4x6


      15
      SRT 0072

      Adaptor nut


      16
      SDL 0059
      501.2155
      Euro Central Adaptor Body/Air Cooling


      17
      SJD 0071
      501.0082
      Nut M10x1


      18
      SSM 0220

      Brass termina Φ2.0x4.0 mm 0.35m


      19
      SSM 0160
      126.0021
      Teflon liner Φ2.0x4.0 mm 3m Red


      20
      SSM 0560
      124.0026
      Red liner Φ1.0-1.2 mm 3m


      21
      SMQ 6000

      Spanner For MIG Torches
